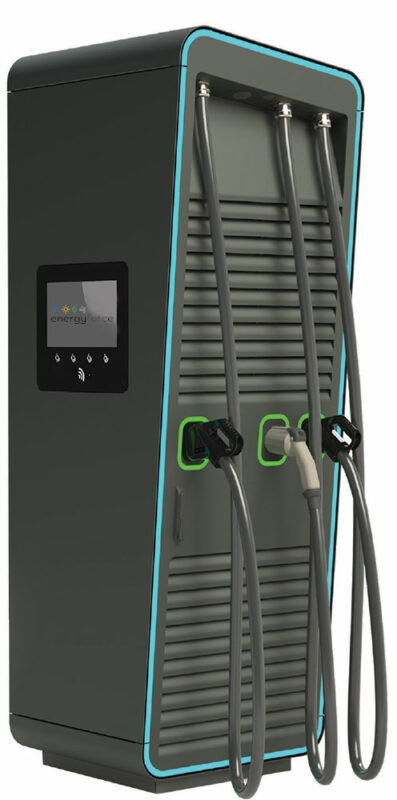

100 kW to 400 kW DC-charging system for EVs
(1) Preliminary data to be verified
Connect to the EnergyForce PowerStack integrated dashboard to view and control the charger or integrate to the EnergyForce InMotion smart app via OCPP.
| SYSTEM SPECIFICATION | |
|---|---|
| DC-connection standard | CCS2 up to 500 A (prepared for 600 A boost) (1) CHAdeMO up to 200 A CCS1 (2) GB/T (2) |
| Ambient | In- and outdoor installation |
| Working temperature | -30° to +55° C (3) |
| Humidity | 5% - 95% relative humidity (non condensing) |
| Protection degree | IP54 |
| IK-rating | IK10 |
| Efficiency | >97% (1) |
GRID | |
| Nominal voltage (rms) | 380 V / 400 V / 480 V (4) |
| Max. input current (cont., rms) | 600 A |
| Frequency | 50 Hz / 60 Hz |
| Power factor with active PFC correction | >0,99 |
DC-OUTPUT | |
| Maximum DC output power (1) | 100 kW, max. 300 A 200 kW, max. 600 A 300 kW, max. 600 A 400 kW, max. 600 A |
| Granularity of output power | 50 kW |
| Output DC voltage range | 150 V - 1000 V |
| Maximum output current | Imax: 500 A (prepared for 600 A boost) (1) |
GENERAL | |
| DC-protocol standard | CCS1/2: SAE J1772 / EN 61851-23/DIN SPEC 70121; ISO 15118 CHAdeMO 1.2 GB/T 27930 (for automotive multicharger) |
| User registration | RFID reader (ISO/IEC 14443A/B, ISO/IEC 15693) Credit Card reader with QR-Code-reader (optional) |
| Network Connection | LTE/UMTS/GSM Modem 4G/3G/2G 10/100Base-T Ethernet |
| Charging infrastructure communication protocol | Open Charge Point Protocol (OCPP) 1.6 J, ready for 2.0 J |
| User Interface | 15,6‘‘ screen, 4 buttons |
MECHANICAL | |

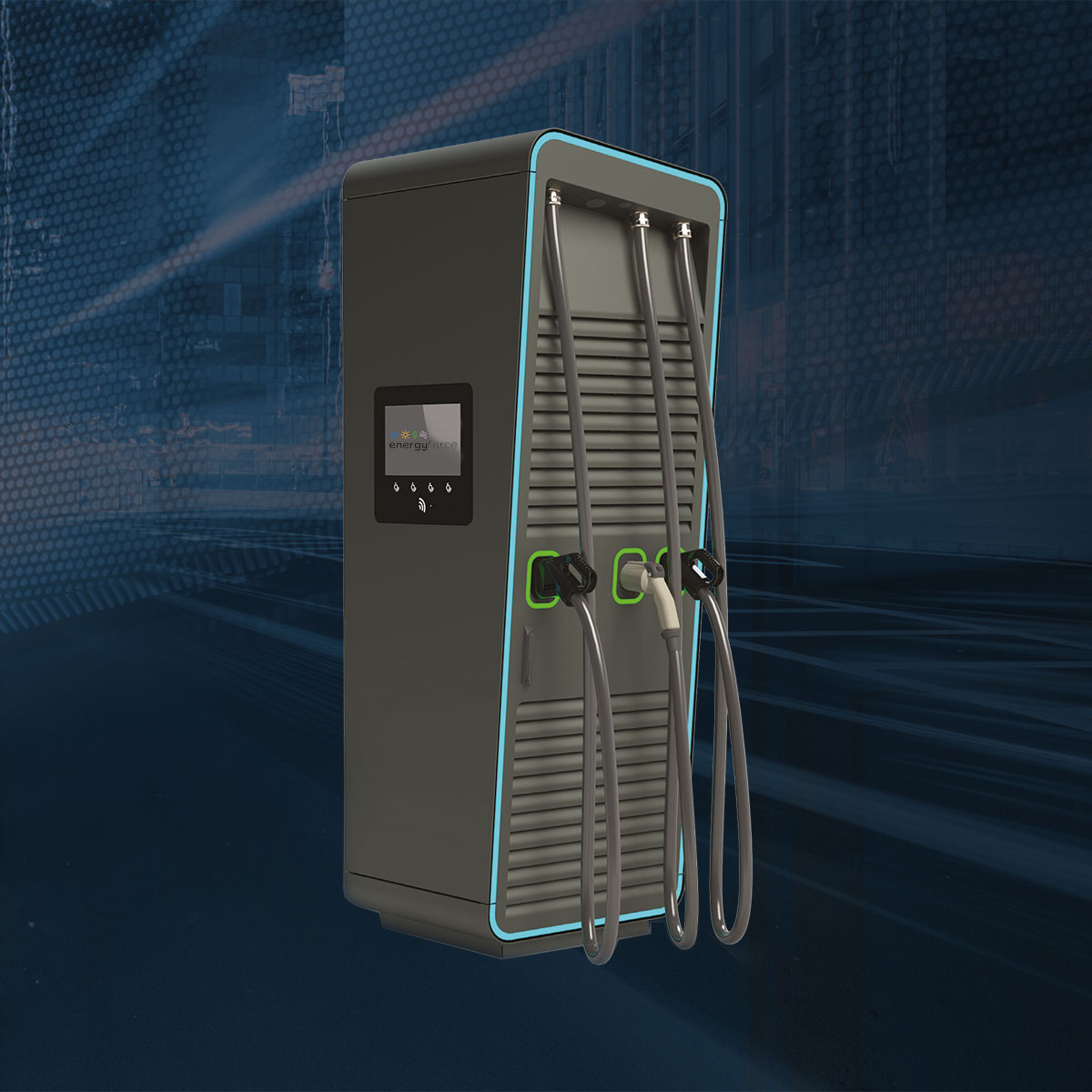

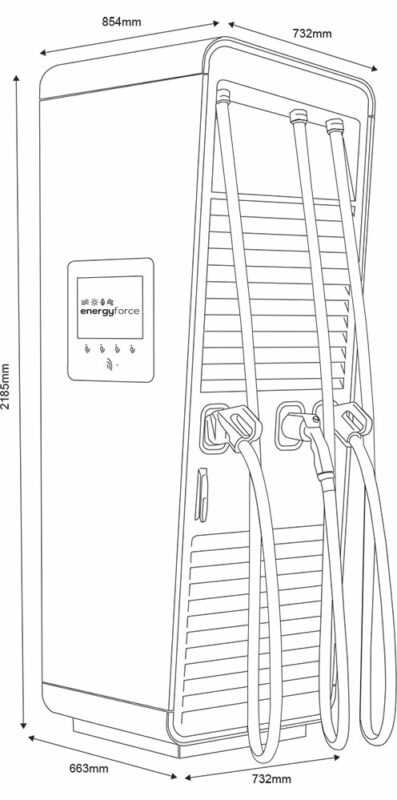

| Dimensions (HxWxL) | 2235 x 732 x 663 mm |
| Weight | 375 kg up to 775 kg (1) |
(1) Preliminary data to be verified (2) Only upon special request by OEMs (3) Derating tbd (4) 480 V only upon special request
